A selection of mechanical drawings are provided below to provide a visual reference for installing RoofKit, specifically as it relates to edges, terminations, corners and vertical walls. Always consult the Pocket Application Guide for RoofKit EPDM or White Reinforced during installation, or contact technical support at
1-800-225-4714 Ext. 7889.

ROOFKIT EPDM

Click image to enlarge

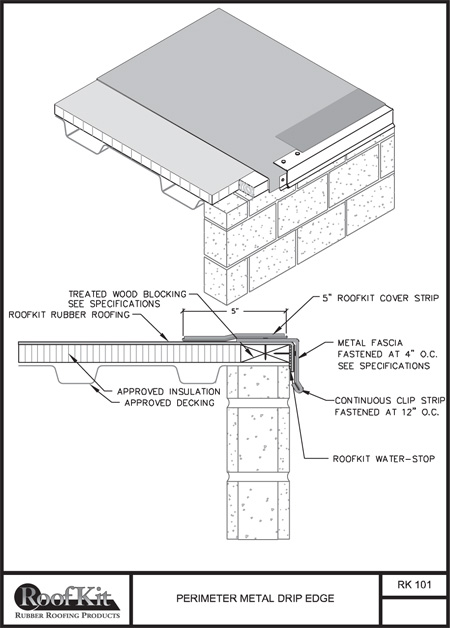

Perimeter Metal Drip Edge

Click image to enlarge

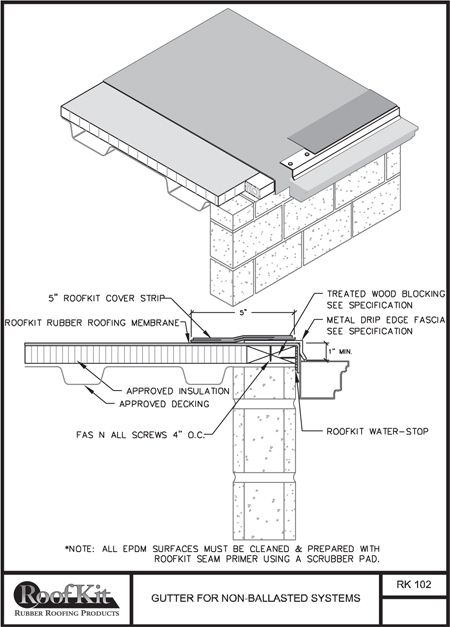

Gutter for Non-Ballasted Systems

Click image to enlarge

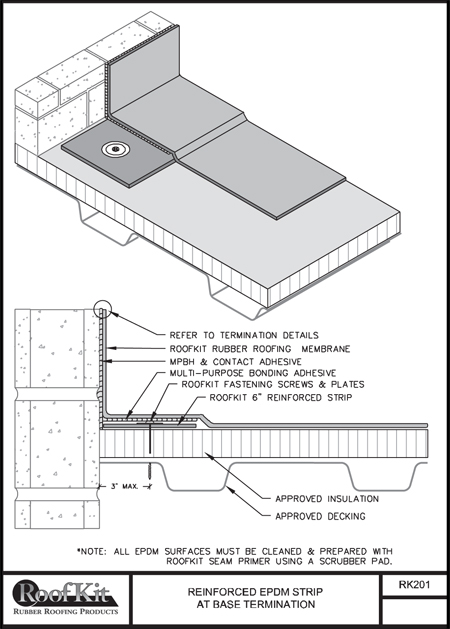

Reinforced EPDM Strip at Base Termination

Click image to enlarge

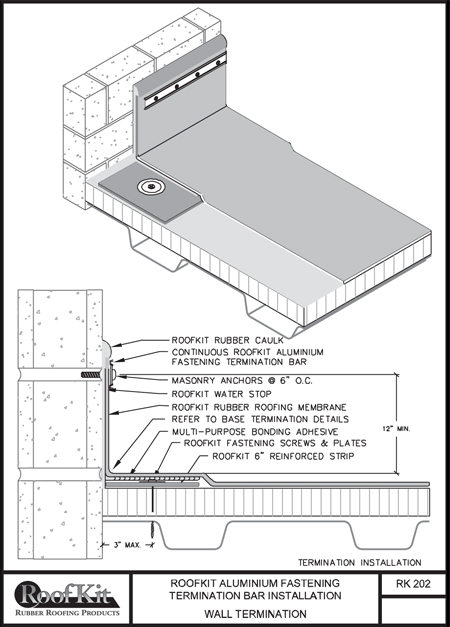

Termination Bar Installation Wall Termination

Click image to enlarge

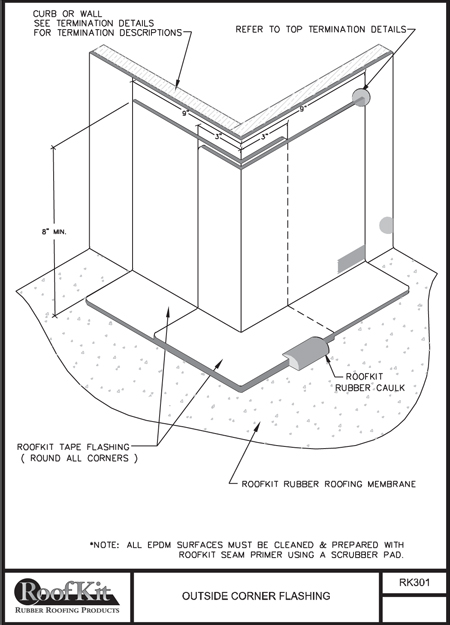

Outside Corner Flashing

Click image to enlarge

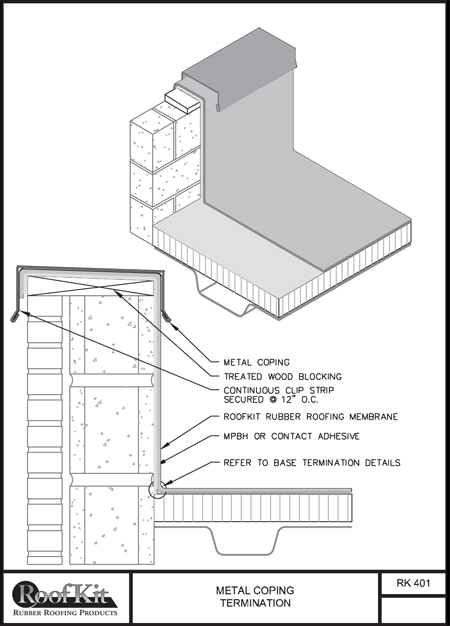

Metal Coping Termination

ROOFKIT WHITE REINFORCED

Click image to enlarge

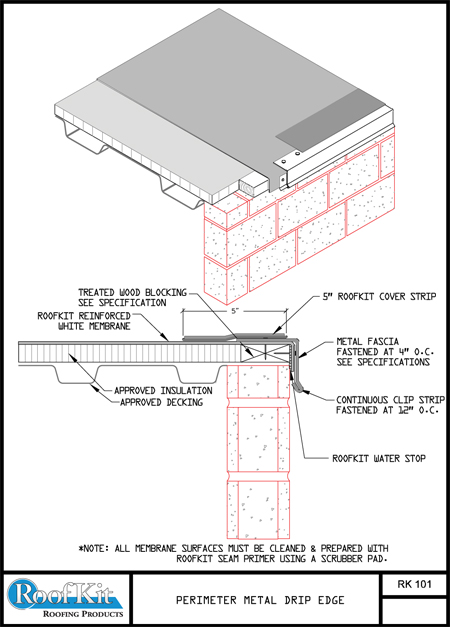

Perimeter Metal Drip Edge

Click image to enlarge

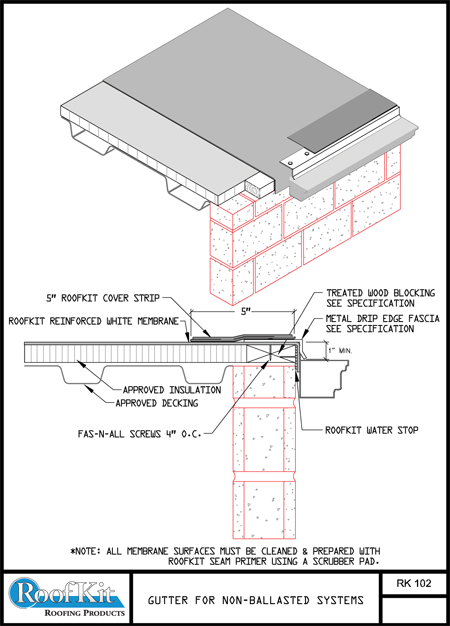

Gutter for Non-Ballasted Systems

Click image to enlarge

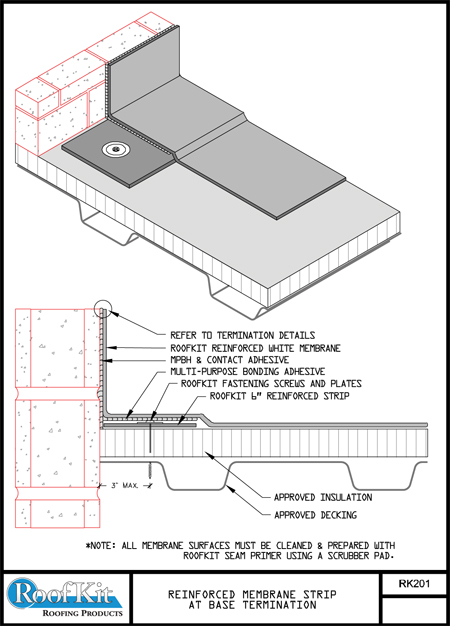

Reinforced Membrane Strip at Base Termination

Click image to enlarge

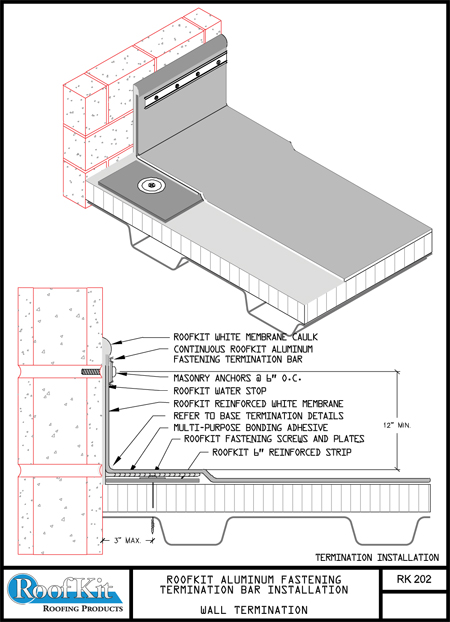

Termination Bar Installation Wall Termination

Click image to enlarge

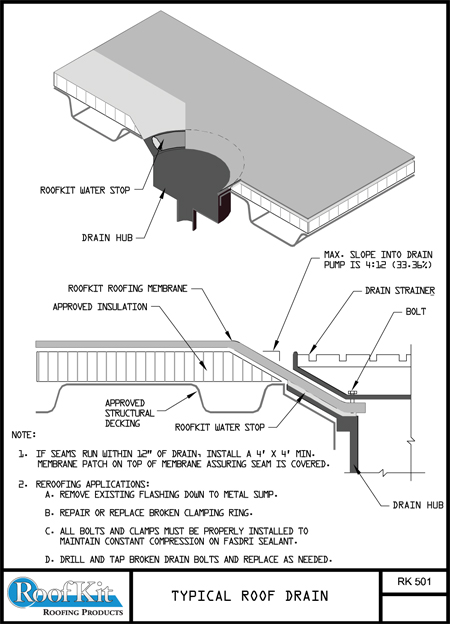

Typical Roof Drain

Click image to enlarge

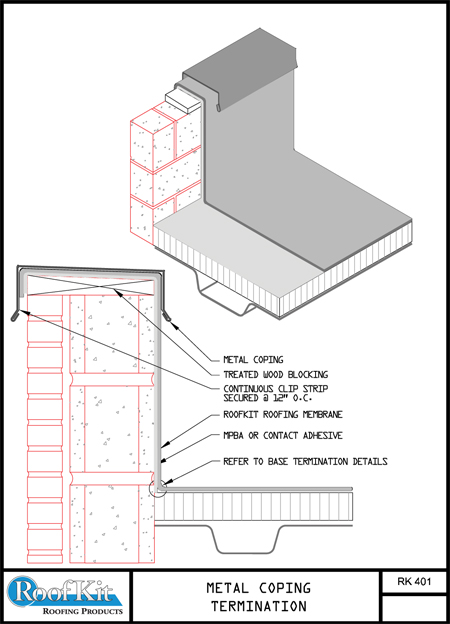

Metal Coping Termination
